Designed and assembled in USA.
This product requires an additional shunt.
PowerMon-RVC is an advanced, RV-C enabled battery monitor and DC power meter designed for comprehensive monitoring and analysis of battery and DC-powered systems. It measures voltage (0-64V), current over 1,000A using an external shunt, and temperature. From these measurements, PowerMon computes a wide range of derived parameters, including power (W), energy (Wh), coulombs (Ah), battery state of charge (% SoC), estimated remaining runtime at current load, and extensive battery and DC power statistics.
PowerMon-RVC can control two mechanical or solid-state relays, allowing it to independently disconnect the charge and discharge paths of the battery it is monitoring.
PowerMon-RVC is fully compliant with RV-C specifications for DC source devices. The device interfaces with the RV-C network (CAN bus) via two standard 4-pin Molex-style connectors. These connectors support inline daisy chaining of multiple RV-C devices, eliminating the need to splice into the CAN bus trunk wiring. Direct connection to the RV-C trunk is also supported; in this configuration, only one connector is used.
Please read the Product Use Disclaimer & Warranty Policy at the bottom of this page before ordering.

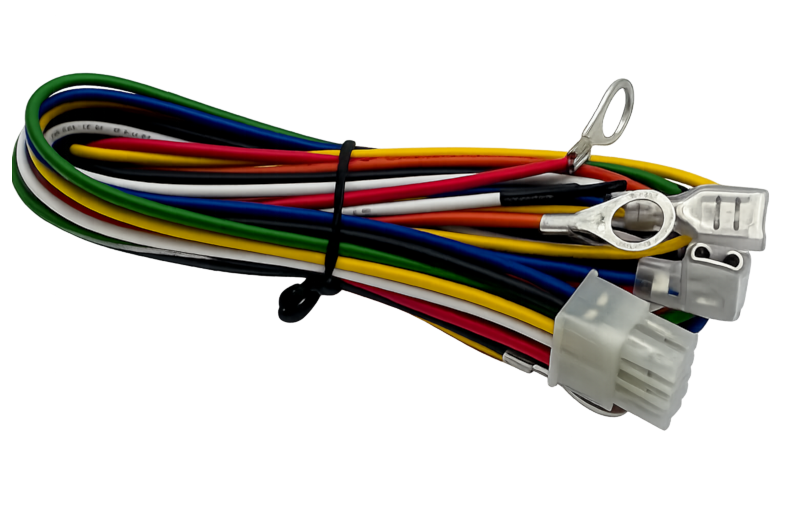

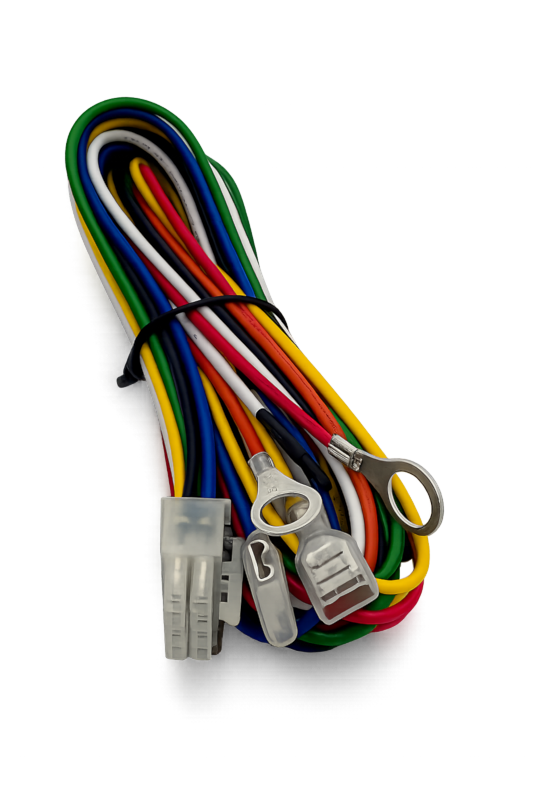

What's In the Box?
